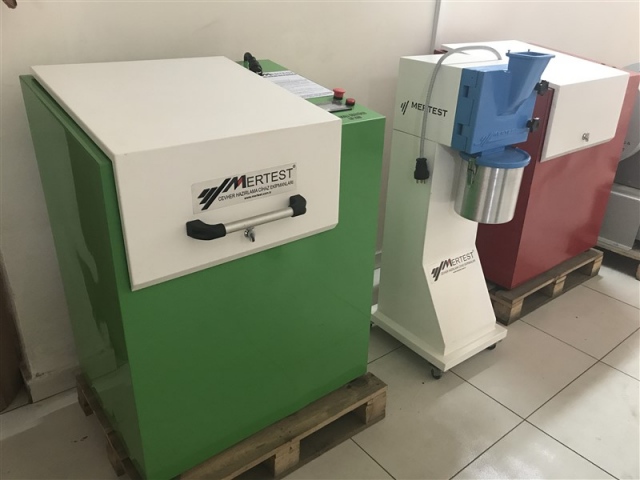

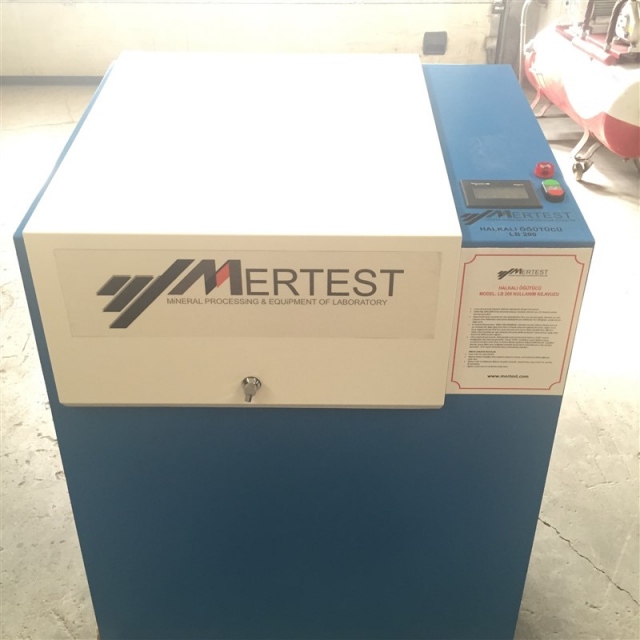

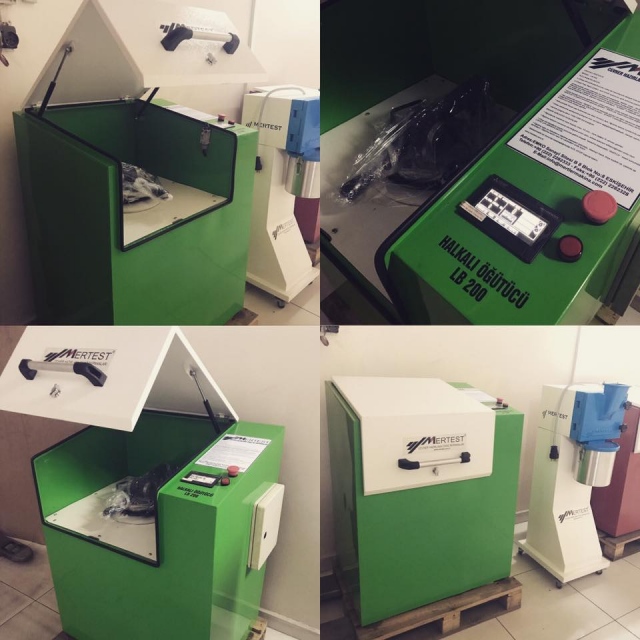

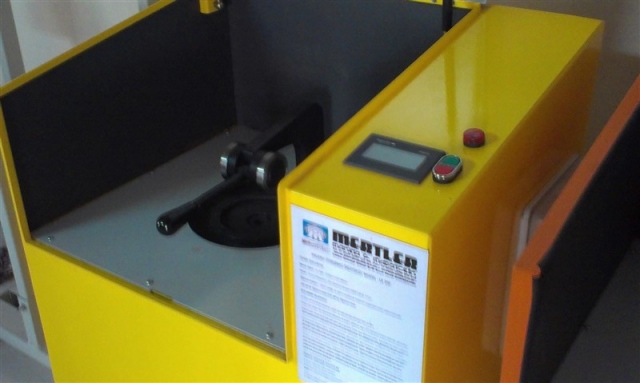

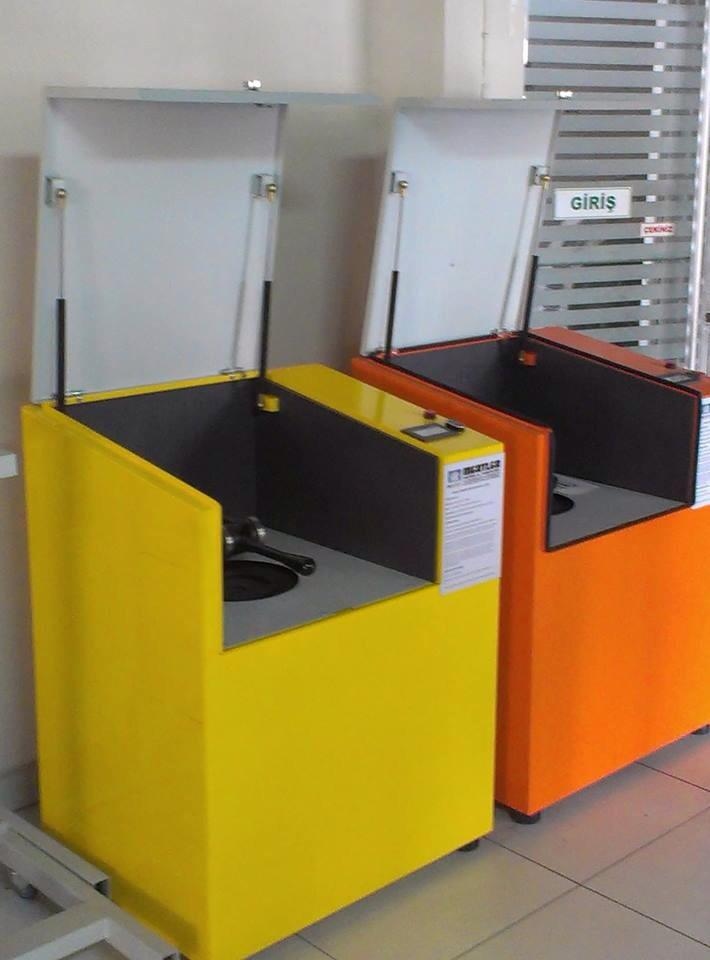

Ring Mill LB 200

Product Features

LB 200 Ring Mill Model




Grain Size that can be ground: <10 mm.


Output Size: <10 µm


Motor Power: 1.1 KW 380 V 50 Hz


Grinding Unit: Steel Construction Manufactured


Width * Length * Height: 850 * 630 * 1050 mm.


Grinding Container: 50 ml -100 ml. -250 ml.

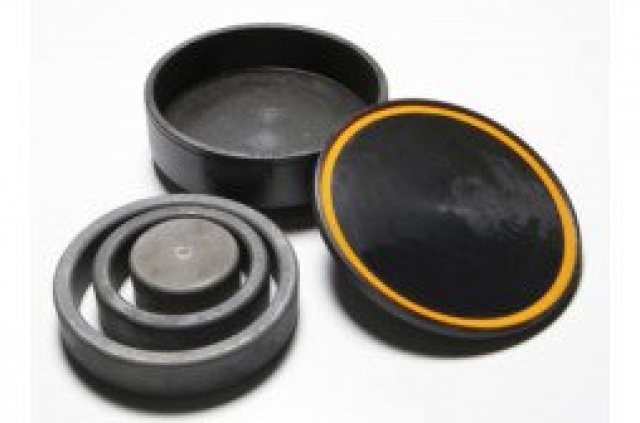

Grinding Container / Ring Set: Rockwell Hardness is 60 Hrc.

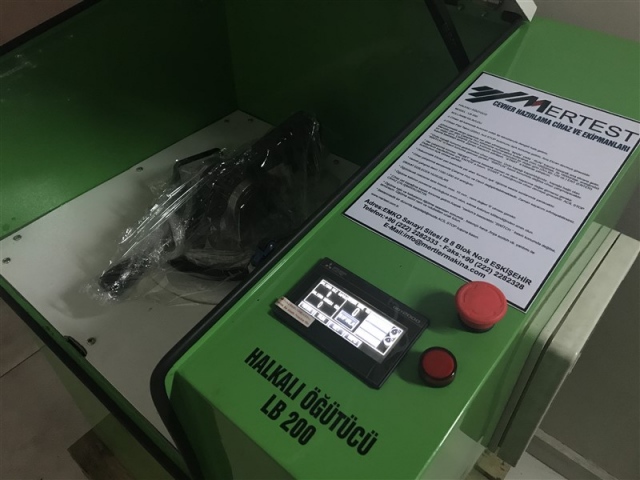

Programming: Grinding Intensity Frequency Control, Timer, Grinding Sessions can be easily set via the Touch Panel.


LB-200 Ring Shredders;

* It is an ideal mill type used in very fine (eg-10 micron) grinding of ore samples in Mining Laboratory.

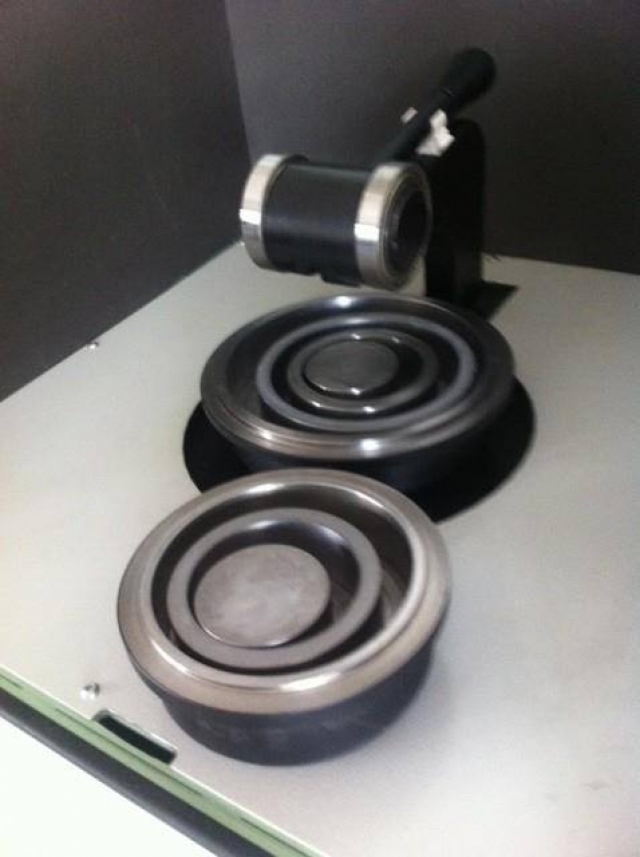

** Grinding Set, ring set and grinder ball are manufactured by processing high-strength steels' surfaces, heat treatment and precision grinding processes. .

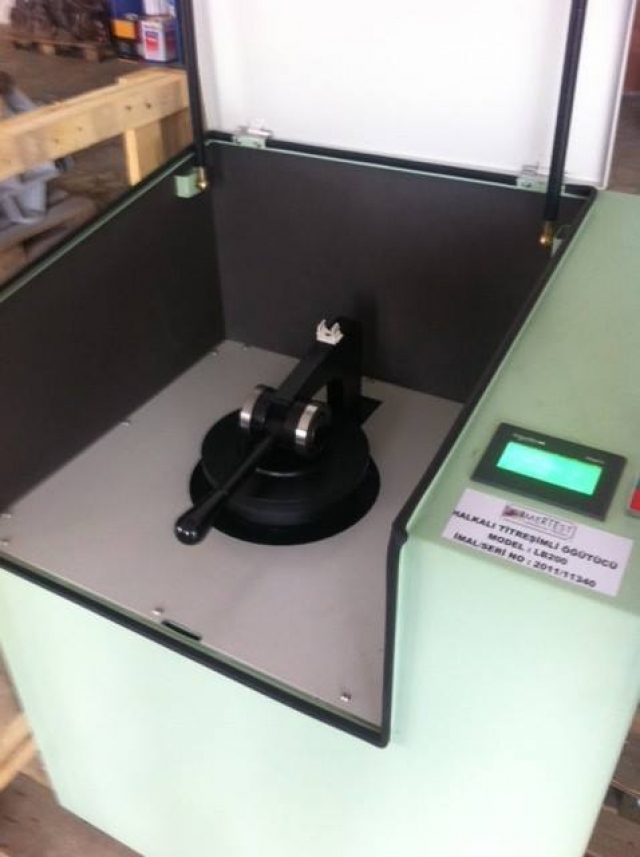

*** The grinding unit is mounted on a monoblock frame. Vibration and sound were minimized in the sessions where severe vibration was performed.
