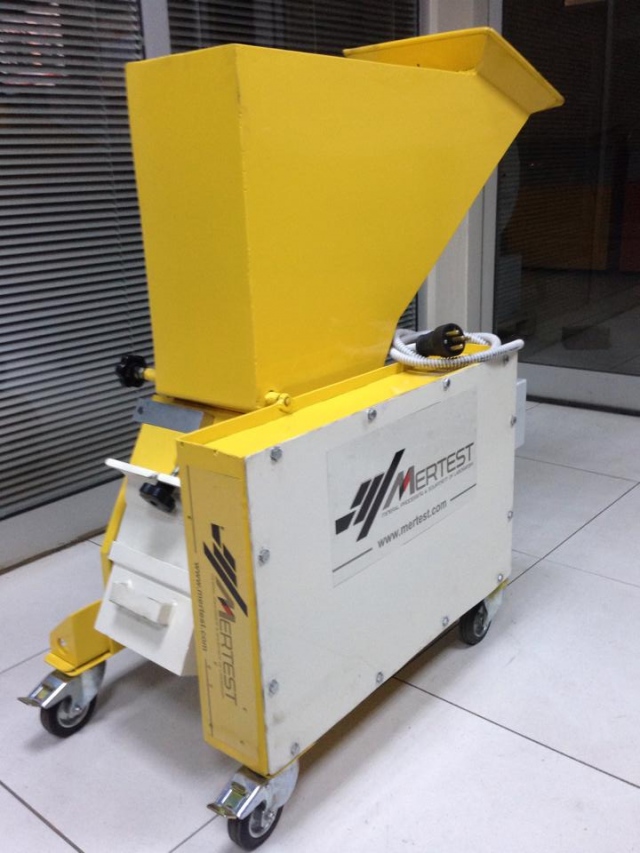

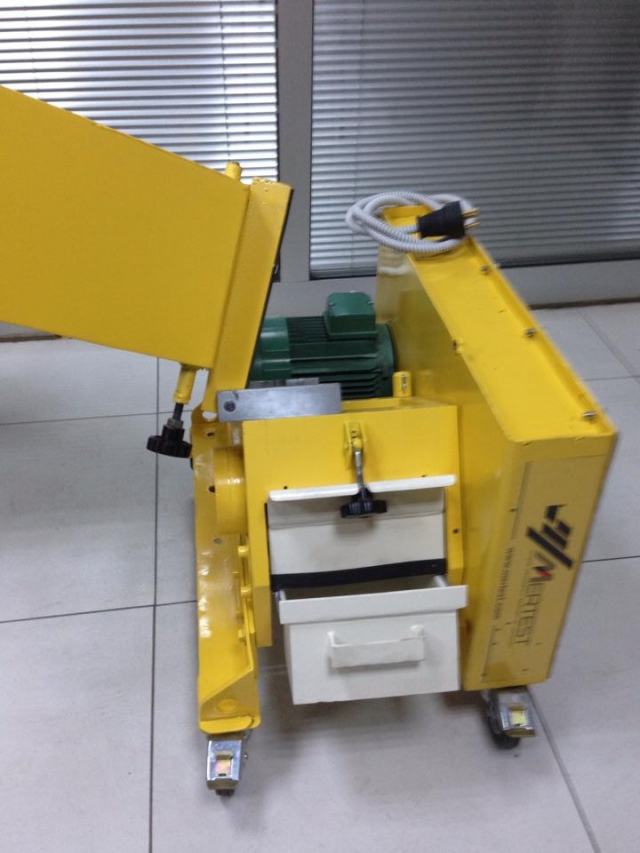

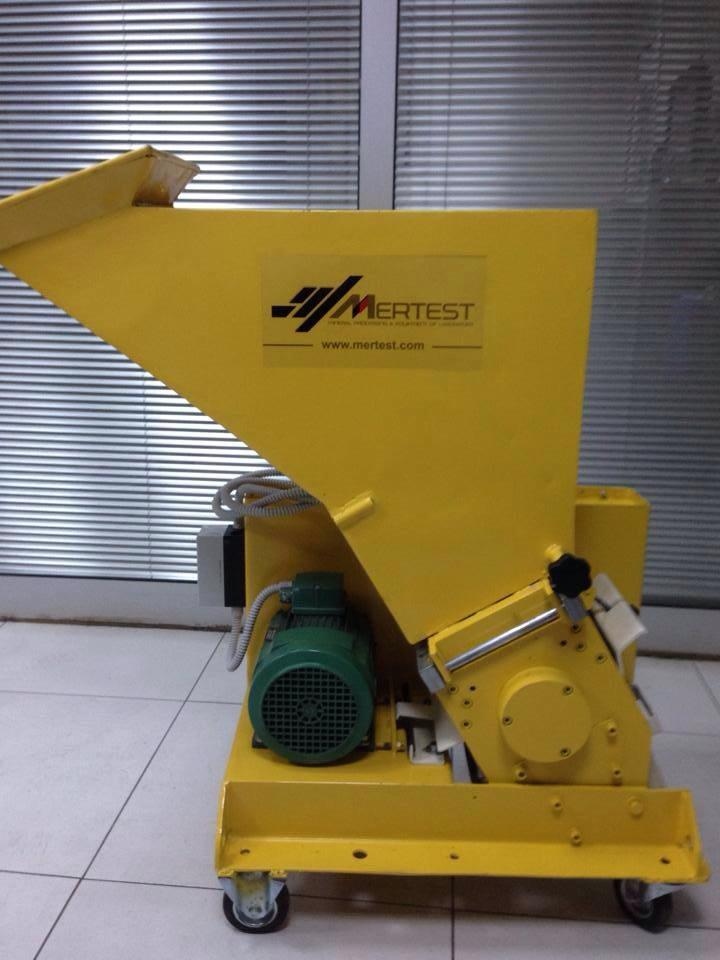

Laboratory Type Knife Crusher LB 260

LB 260 Laboratory Scale Knife Crushers have outer bodies manufactured from steel construction and feature replaceable blades on the rotor that are hardened by heat treatment and subjected to grinding. The fed material undergoes fragmentation (cutting) between the knives on the rotor and the grinding wall.

LB 260 knife crushers, which offer high performance in laboratory-scale analysis preparations, provide superior results in the reduction of samples by the cutting method. Its outer body, featuring a steel construction structure, maintains the structural stability and durability of the device even during the most intense working tempos.

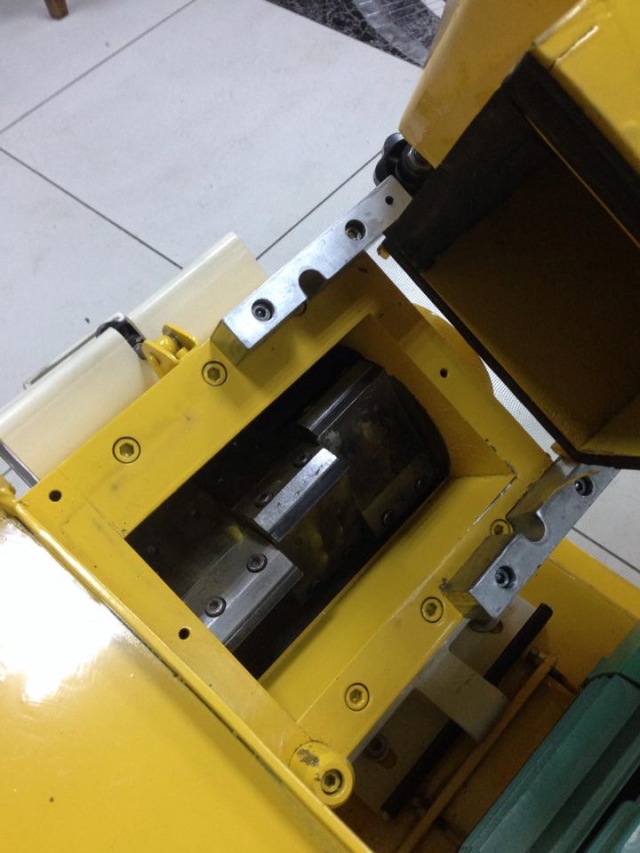

The rotor assembly at the heart of the system is equipped with special knives that have been hardened by heat treatment and passed through precision grinding processes. The fed material is crushed by being squeezed between these sharp knives on the rotor and the grinding wall, and an effective cutting process is performed at high speed.

SPECIFICATIONS TECHNICAL DETAILS (LB 260)
CHAMBER DIAMETER / LENGTH 160 mm / 240 mm
MOTOR POWER 2.2 kW - 1400 rpm
OUTPUT GRAIN SIZE Min. > -1 mm (Adjustable with interchangeable bottom screens)
SCREEN FEATURES Interchangeable and reversible for various grain sizes
DIMENSIONS (W x L x H) 500 x 700 x 900 mm
WEIGHT 130 kg

Laboratory Type Knife Crusher LB 260
