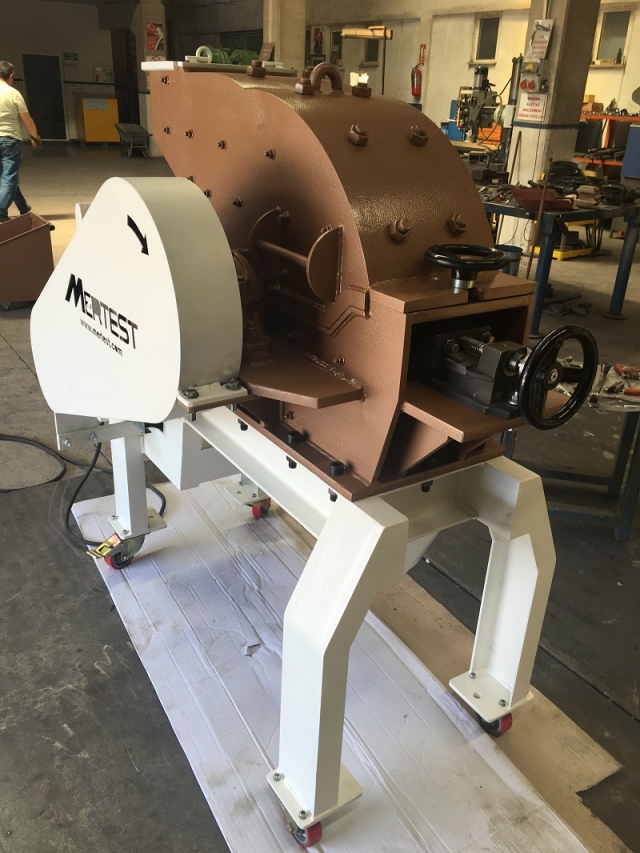

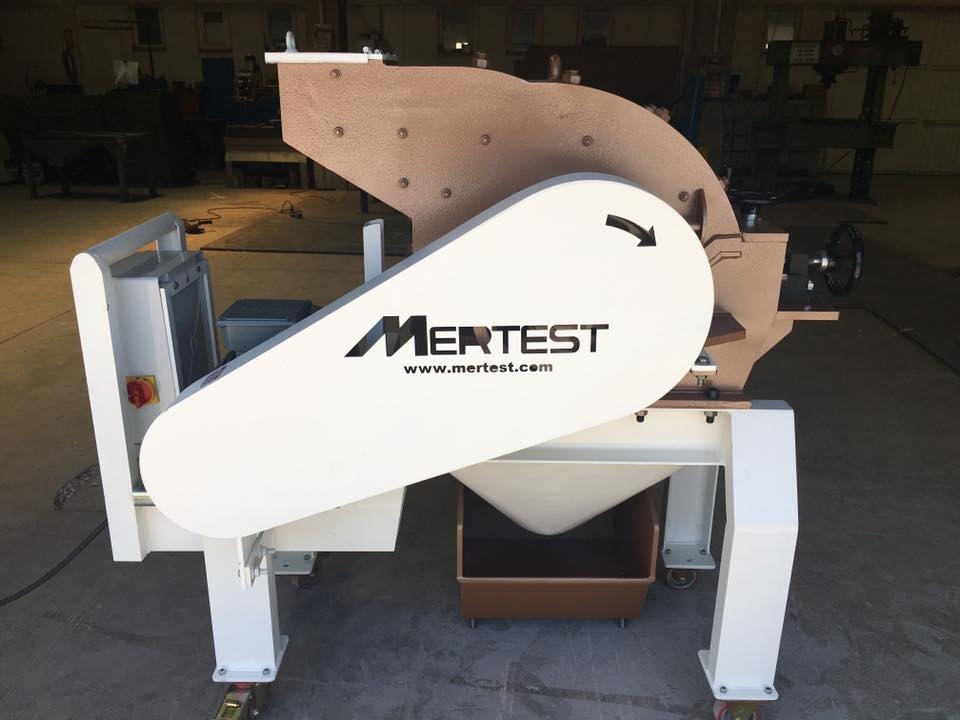

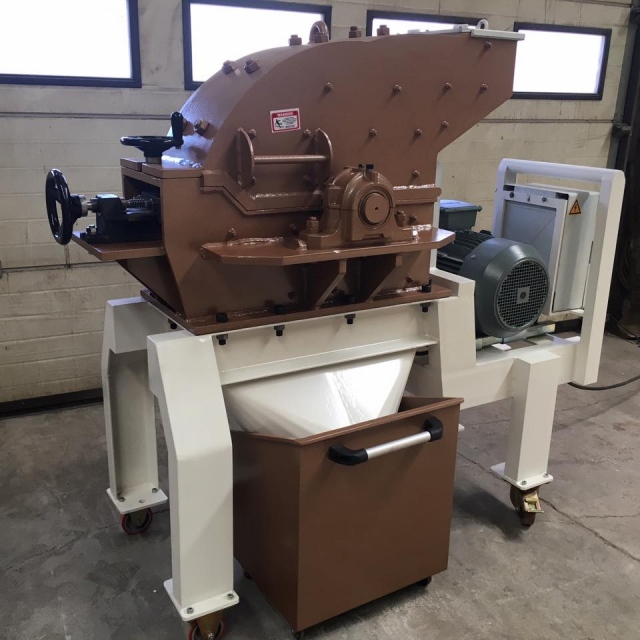

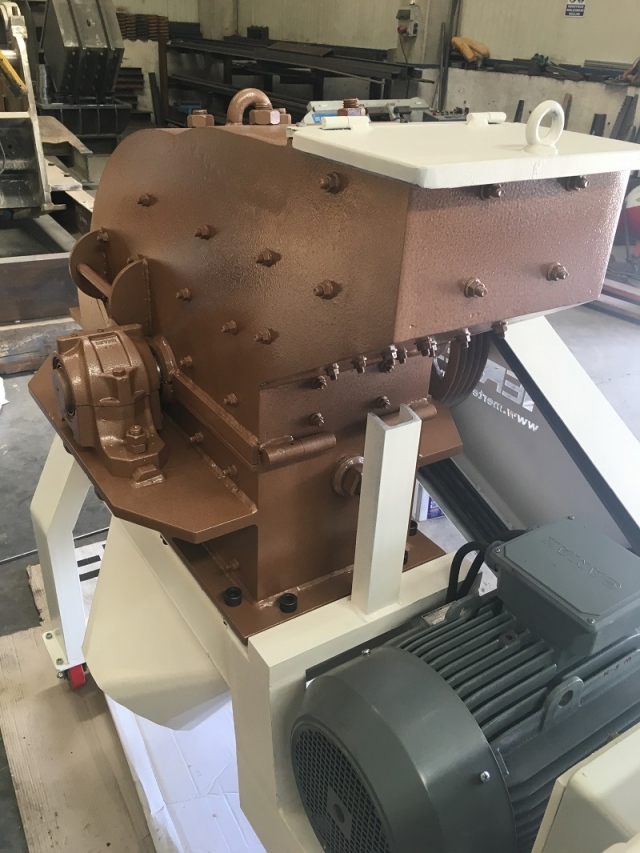

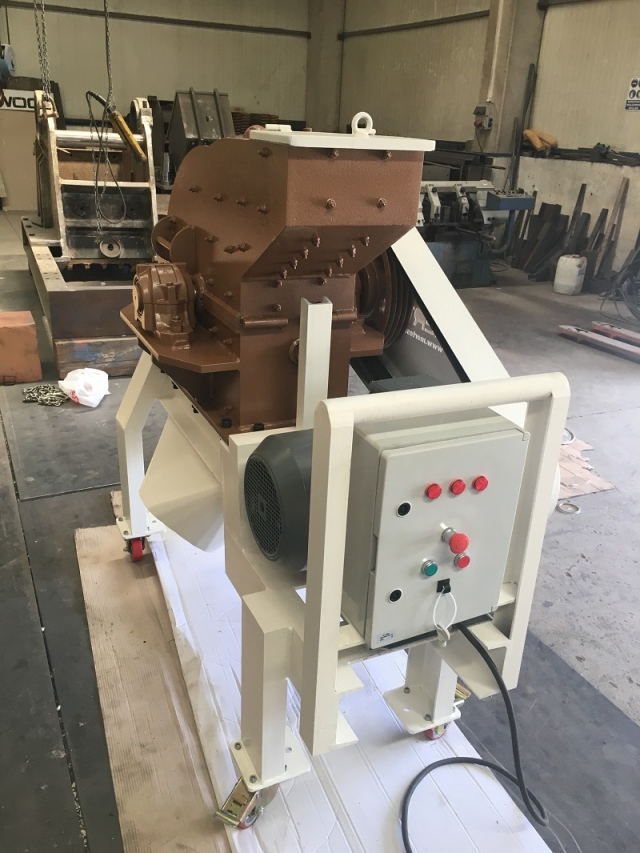

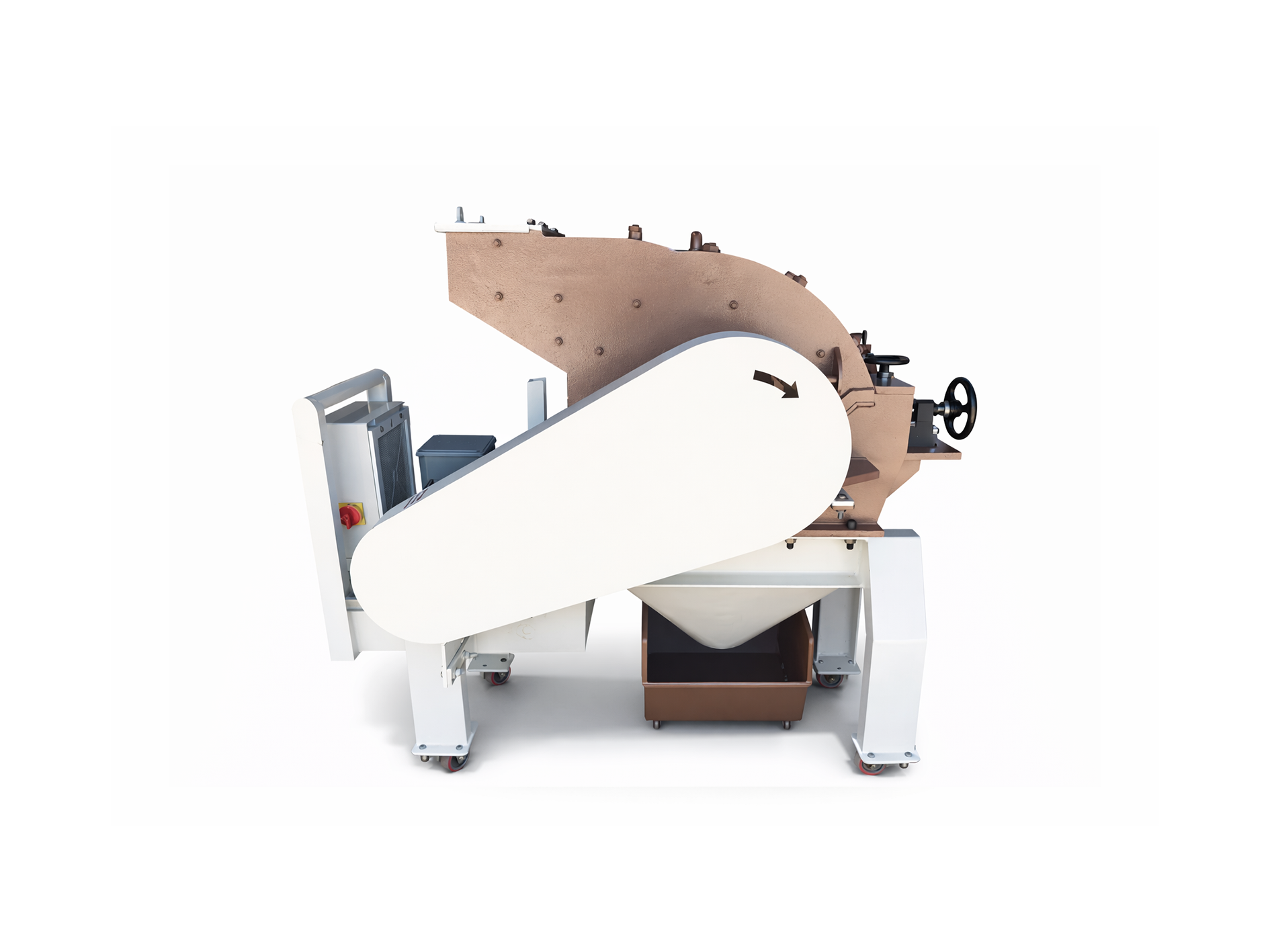

The LB 280 Laboratory Type Impact Crusher (Cubiczer Crusher)

The Cubiczer Crusher is used for the cubic fragmentation of various minerals and rocks, ranging from soft to very hard.

The Cubiczer Crusher is used for the cubic fragmentation of various minerals and rocks, ranging from soft to very hard. One of its greatest advantages is its low cost. Also known as an impact crusher, it is frequently used for basalt and granite. Since the proximity of the breaker plate to the blow bars is adjustable, the size of the crushed material can be changed as desired. Its most common use is the production of gravel and road materials. The machine is very easy to install and operate, providing reliable use for many years.

NOMINAL ROTOR SIZE: 240 * 500 mm. Ø

FEED SIZE: 150 mm. max. (For materials with limestone-like hardness)

OUTPUT GRAIN SIZE: 0-5 mm. (Grain size is adjustable)

CAPACITY: 100-300 kg/hour (Variable based on material type and output size)

BODY: Steel Construction

BLOW BARS AND LINER PLATES: 16-18% Mn. Cr Alloyed Cast Steel

MOTOR POWER: 15 kW, 380 V, 50 Hz

ELECTRICAL: Soft starter via the electrical control panel.

SPARE PARTS: LB 280 Impact Crushers are engineered using CAD-based software, and all components are machined on CNC systems. Spare parts are maintained in our permanent stock.

PAINT: All our products undergo an electrostatic powder coating process with oven curing.

The integration of high-alloy manganese steel and precision CNC manufacturing ensures that the LB 280 maintains high performance under heavy laboratory loads. The electrostatic powder coating provides superior resistance against corrosion and industrial wear.
